Tyvek / Tychem® TK

TK614T LY

Tychem® TK

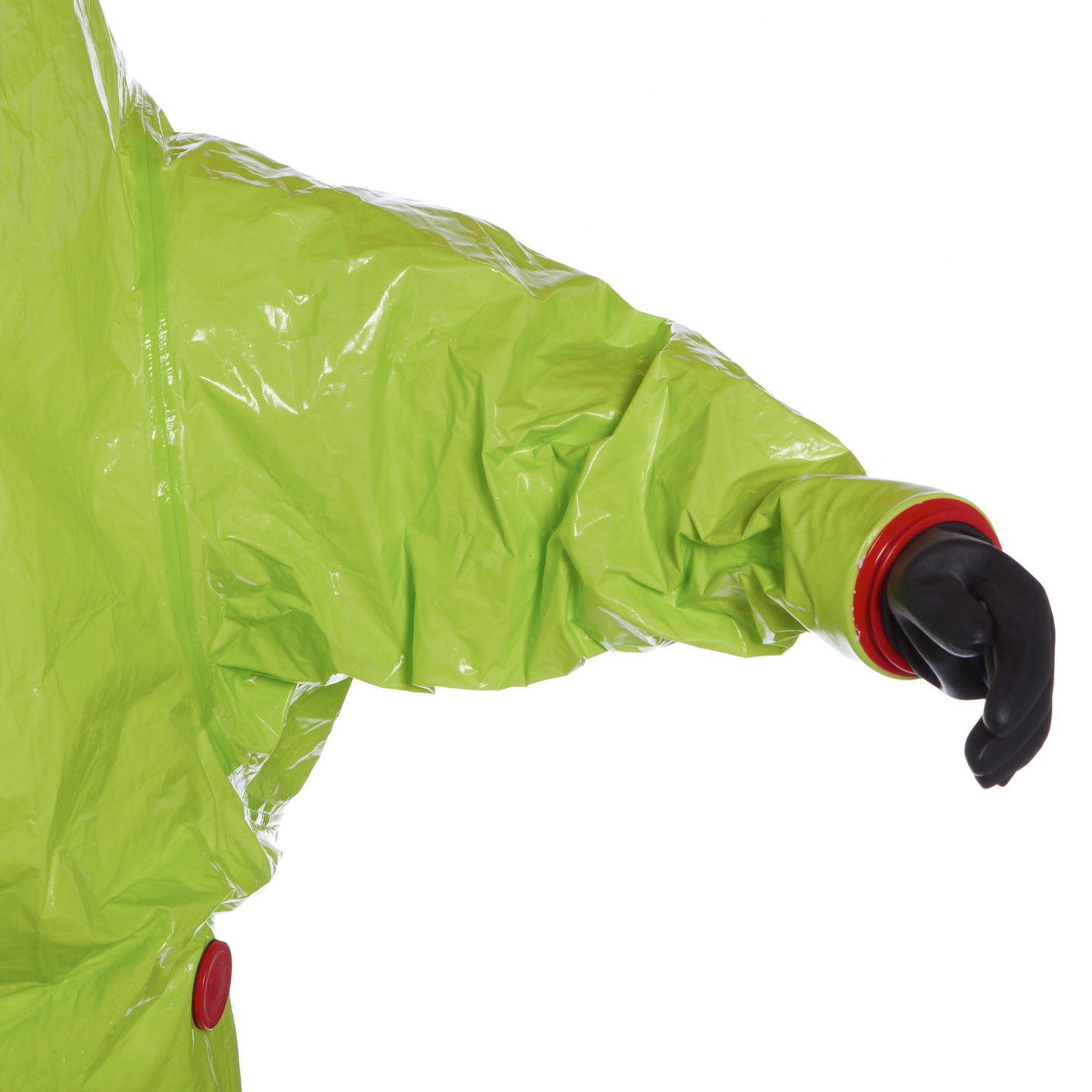

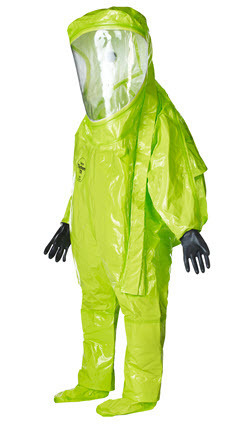

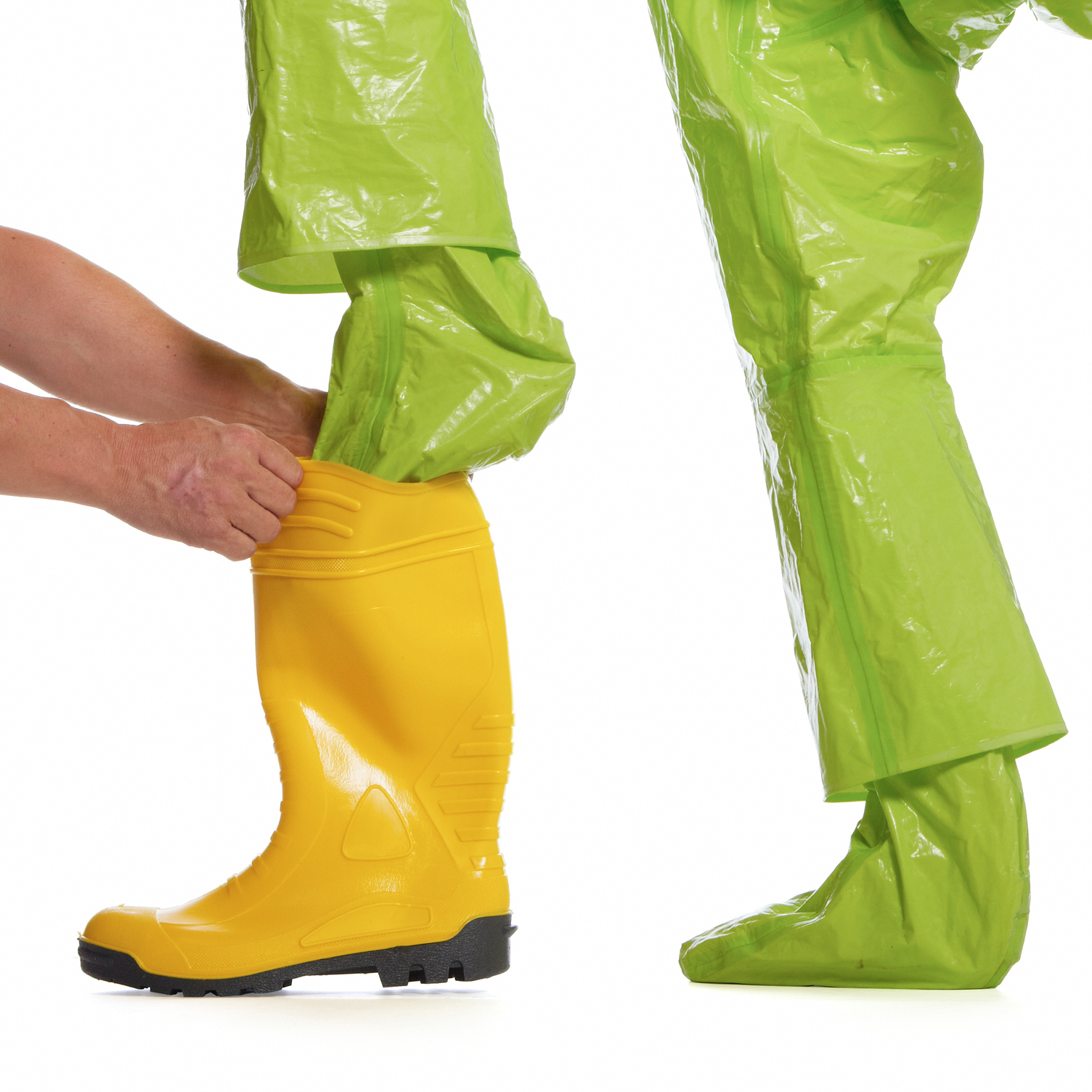

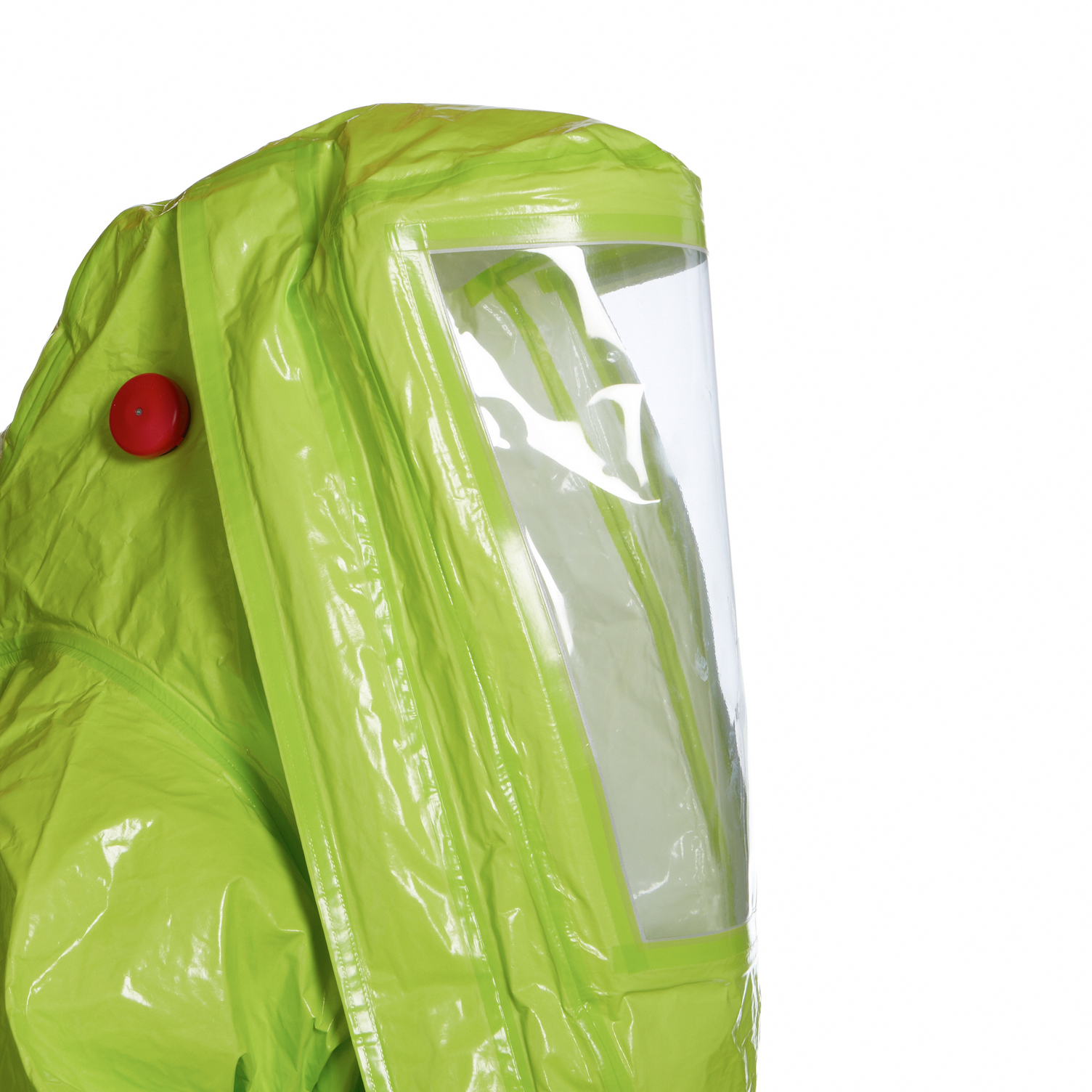

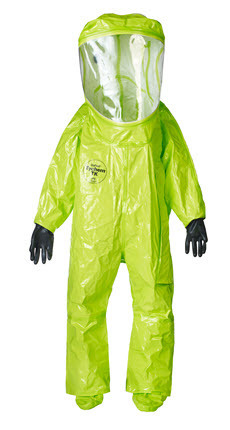

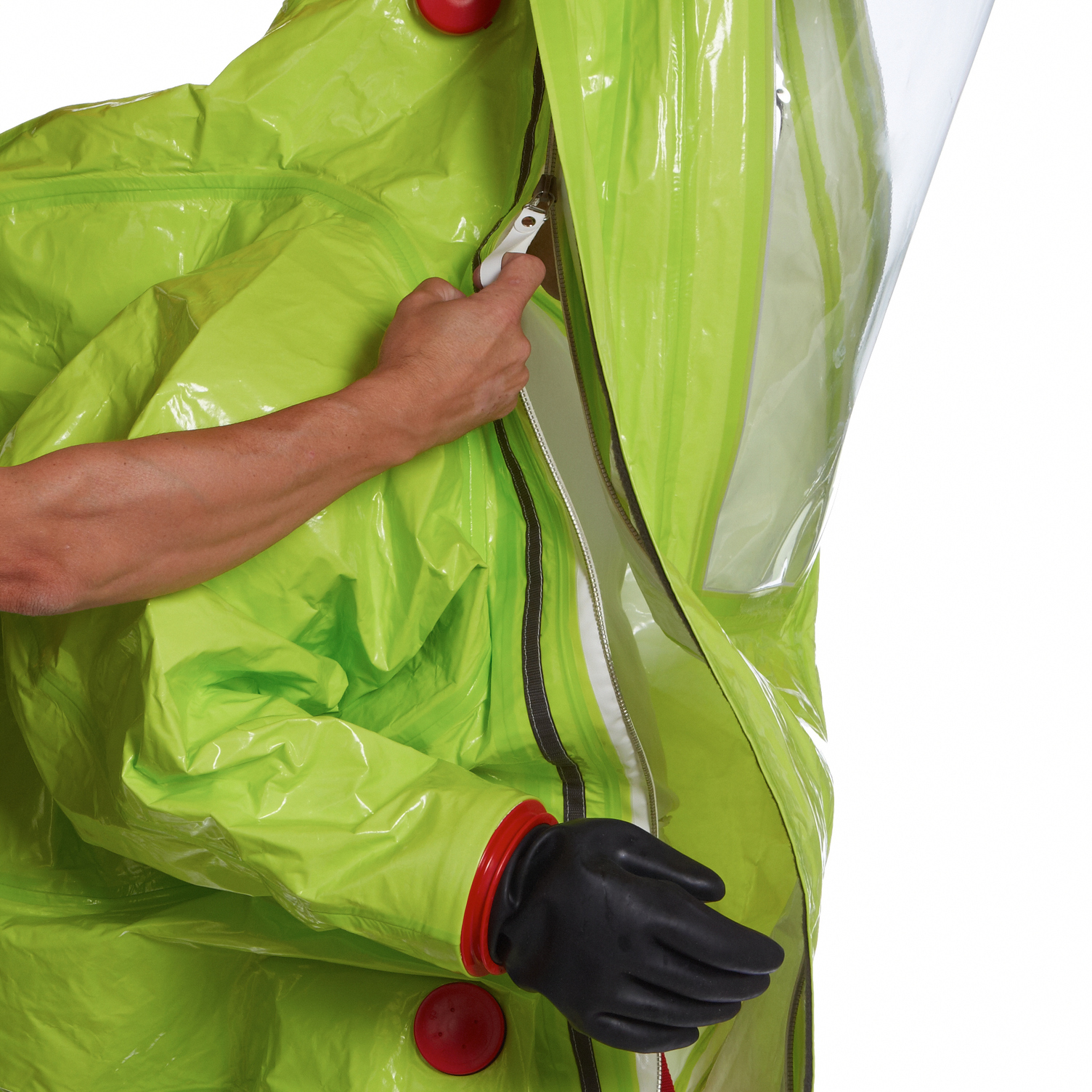

DuPont™ Tychem® TK model TK614T. Limited-use front entry gas-tight suits with expanded back for SCBA, with stitched and double taped (inside and out) seams, with vapor tight zipper, hook and loop double zipper flap, attached two piece glove system, adjustable waist belt, integrated socks, with positive pressure exhaust valve and with three ply clear visor. Available in ten nominal sizes and with outer glove options· Butyl (Option code 00) or Viton (Option code 5C). Lime Yellow.




Hover over image to zoom
Name Description
Full Part Number TK0614TLY00
Fabric/Materials Tychem® 10000
Design Gas-tight suit with integral socks and boot flaps
Seam Stitched and double-overtaped
Color Lime green
Sizes XS, SM, MD, LG, XL, 2X, 3X, 4X, 5X, 6X
Quantity/Box 1 per box

FEATURES & PRODUCT DETAILS

DuPont™ Tychem® TK model TK614T, limited-use front entry gas-tight suits with expanded back for SCBA, with stitched and double taped (inside and out) seams, with vapour tight zipper, hook and loop double zipper flap, attached two piece glove system, adjustable waist belt, integrated socks, with positive pressure exhaust valve and with three ply clear visor. Available in ten nominal sizes and with outer glove options· Butyl (Option code 00) or Viton (Option code 5C).
Tychem® TK exhibits excellent chemical barrier properties and offers an extremely durable fabric that is puncture- and tear-resistant, yet is also supple and lightweight.Permeation data for Tychem® TK fabric are available for more than 300 chemicals. For more than 270 of these chemicals no breakthrough has been observed during a test duration of 480 minutes.The required resistance to permeation for the 15 chemicals listed in EN 943-2 has been met for Tychem® TK fabric, visor, inner layer glove and seams.
The Tychem® TK garment is specifically developed for protection against toxic, corrosive gases, liquids and solid chemicals and is suited for industrial, HazMat and domestic preparedness applications.

  • Chemical protective clothing, Category III, Type 1a-ET
  • CE Certified according to EN 943-1 + EN 943-2 (Limited-Use gas-tight chemical protective suit for emergencies teams)
  • Front Entry
  • See Instruction for Use for further information like Recommended Donning and Doffing Instruction, Glove replacement, Internal pressure test, Storage etc.

SIZES

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result
Basis Weight ASTM D3776 12 oz/yd2
Breaking Strength - Grab (CD) ASTM D5034 170 lbf
Breaking Strength - Grab (MD) ASTM D5034 151 lbf
Burst Strength - Ball ASTM D3787 185 lbf
Tear Resistance - Trap Tear (CD) ASTM D5733 56 lbf
Tear Resistance - Trap Tear (MD) ASTM D5733 75 lbf
Thickness ASTM D1777 28 mils
Wearing Apparel Flammability 16 CFR 1610 Class 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Not Applicable
  •  Standard Deviation

WARNING

PERMEATION DATA

SPECIAL WARNINGS
