Tyvek / Tychem® 10000

TK527T LY

Tychem® 10000

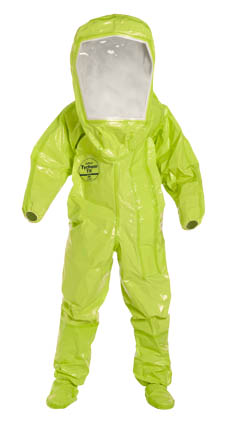

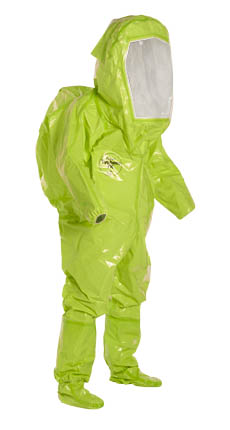

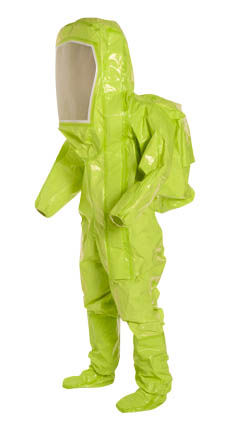

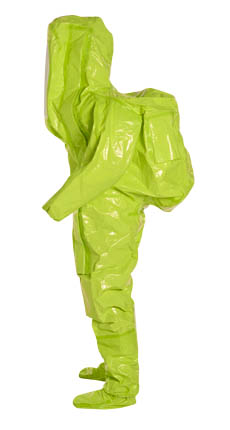

DuPont™ Tychem® 10000 Encapsulated Level B Suit. Expanded Back, Front Entry. Standard Visor, 1 Layer: 40 mil PVC. Elastic Wrists. Attached Socks with Outer Boot Flaps. Double Storm Flap with Hook & Loop Closure. Two Exhaust Vents. Taped Seams. Lime Yellow.




Hover over image to zoom
Name Description
Full Part Number TK527TLYxx0001yy (xx=size;yy=option code)  Help
Fabric/Materials TYCHEM® 10000
Design Encap. Level B, Exp Back, Front Entry
Seam Taped
Color Lime Yellow
Sizes SM,MD,LG,XL,2X,3X,4X
Quantity/Box 1 per case

FEATURES & PRODUCT DETAILS

Tychem® 10000 exhibits excellent chemical barrier properties and offers an extremely durable fabric that is puncture- and tear-resistant. Tychem® 10000 fabric shows at least 30 minutes of barrier protection to 322 challenge chemicals with no observed breakthrough. Tychem® 10000 is specifically developed for protection against toxic, corrosive gases, liquids and solid chemicals. This high-performance chemical barrier fabric is suited for industrial, HazMat, and domestic preparedness applications.

  • Encapsulated design provides protection from liquid splash exposure for both the wearer and respiratory equipment
  • Also provides coverage from overhead liquid splash (does not provide vapor protection)
  • Taped seams provide strong chemical resistance against heavy liquid splashes. A sewn seam is covered with a strip of compatible chemical-resistant material through heat sealing
  • Standard 40 mil PVC faceshield
  • Front entry design allows wearer to partially don garment (maintain standby position) without assistance

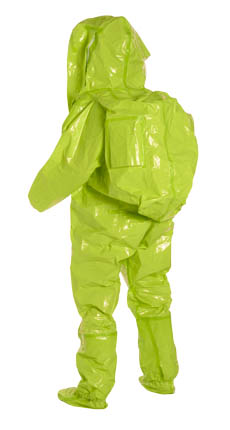

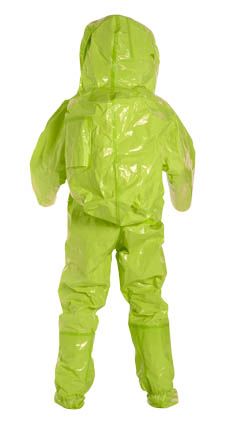

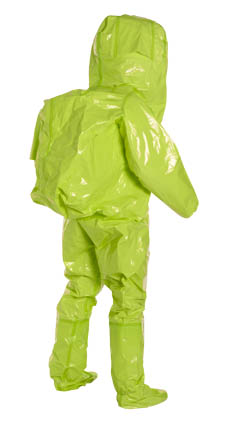

  • Expanded back to accommodate self-contained air breathing apparatus (SCBA)
  • Liquid resistant, extra long zipper to increase garment opening and aid donning and doffing
  • Storm flap covers zipper which can be secured by the wearer with rugged hook and loop material to prevent intrusion at zipper
  • Elastic opening for tighter fit at wrist
  • Integrated socks composed of garment material
  • Attached flaps are designed to cover boot tops to help reduce potential for liquid intrusion
  • Made in the USA, North American Free Trade Agreement (NAFTA) compliant and Trade Agreement Act (TAA) compliant

AVAILABLE OPTIONS

FINISHED DIMENSIONS

ADDITIONAL EQUIPMENT NEEDED

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result
Basis Weight . ASTM D3776 12 oz/yd2
Breaking Strength -- Grab (MD). ASTM D5034 151 lbf
Breaking Strength-Grab (CD). ASTM D5034 170 lbf
Burst Strength - Ball ASTM D3787 185 lbf
Tear Resistance - Trap Tear (CD) ASTM D5733 56 lbf
Tear Resistance - Trap Tear (MD) ASTM D5733 75 lbf
Thickness (PPSH-249) ASTM D1777 28 mils
Wearing Apparel Flammability 16 CFR 1610 Class 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Not Applicable
  •  Standard Deviation

WARNING

PERMEATION DATA

SPECIAL WARNINGS
